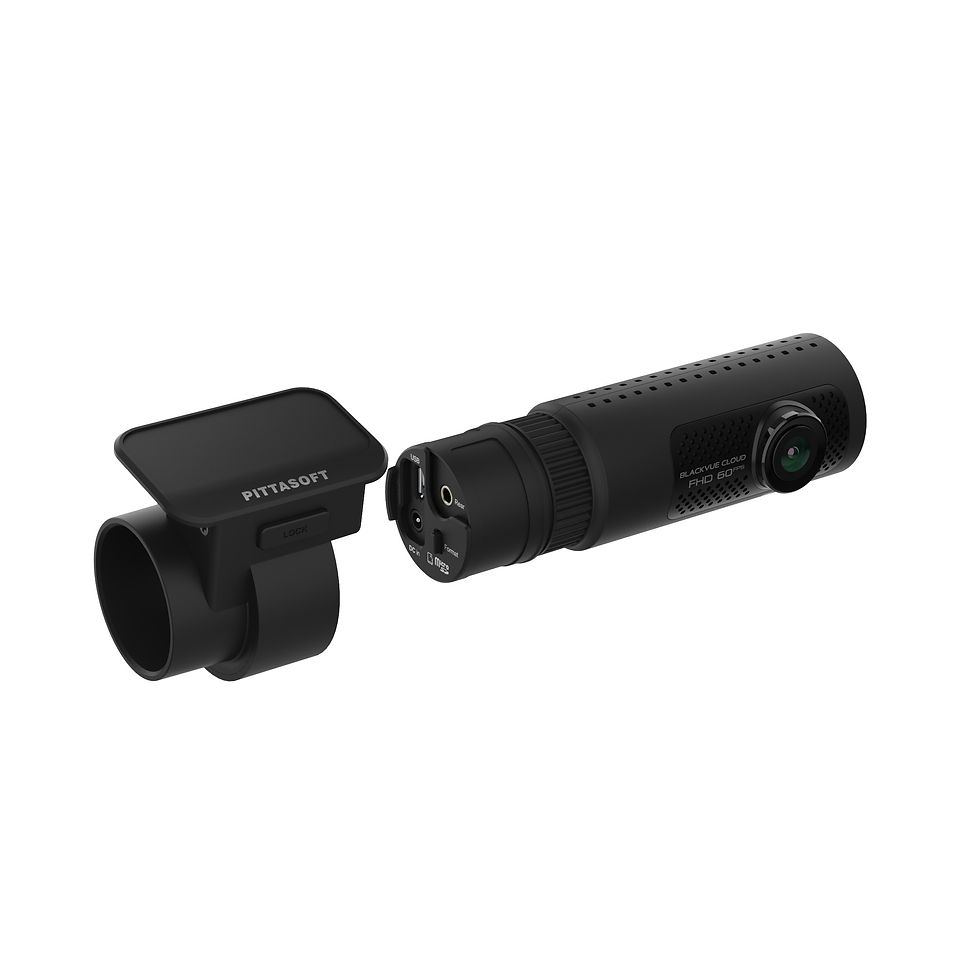

Blackvue DR770X-1CH
BlackVue DR770X-1CH features Full HD Sony STARVIS™ image sensor for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.
Specifications
What's included
Model Name | DR770X-1CH |
Channel | 1CH (upgradable to 2CH) |
Highlights | Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module |
Product Dimensions | Black / Width 118.5mm x Height 36mm / 104g |
Memory Support | microSD card up to 256GB |
Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). |
Parking Mode | YES (hardwiring cable included) |
Parking Mode Event Voice Notifications | YES |
Imaging Sensor | Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
Resolution Frame Rate | Full HD @60fps |
Video Codec | H.264 (AVC) |
Image Quality and Bitrate Front/Rear | Highest (Extreme): 25 Mbps |
Format Free | YES (Adaptive) |
Event File Overwrite Protection | YES (up to 50) |
SD Card Failure Alert | YES |
Scheduled Reboot | YES |
Video File Extension | MP4 |
Wi-Fi | Built-in (802.11 b.g.n) |
Cloud Compatible | YES |
GPS | Built-in (Dual Band : GPS, GLONASS) |
Microphone | Built-in |
Speaker | Built-in |
Impact Sensor | 3-Axis Acceleration Sensor |
LED Indicators | Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. |
Operation Temperature | -20 °C − 80 °C (-4 °F − 176 °F) |
Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
High Temp Cut Off | Approx. 80 °C (176 °F) |
Backup Battery | Built-in supercapacitor |
Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
Power Consumption Hour | Normal Mode (GPS On/1CH): Avg. 240mA / 12V |
Certifications | FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
Software | BlackVue Viewer |
Application | BlackVue Application |
Others | Adaptive Format-Free File Management System |
Bluetooth | Built-in (V2.1+EDR/4.2) |
LTE | External (optional) |
