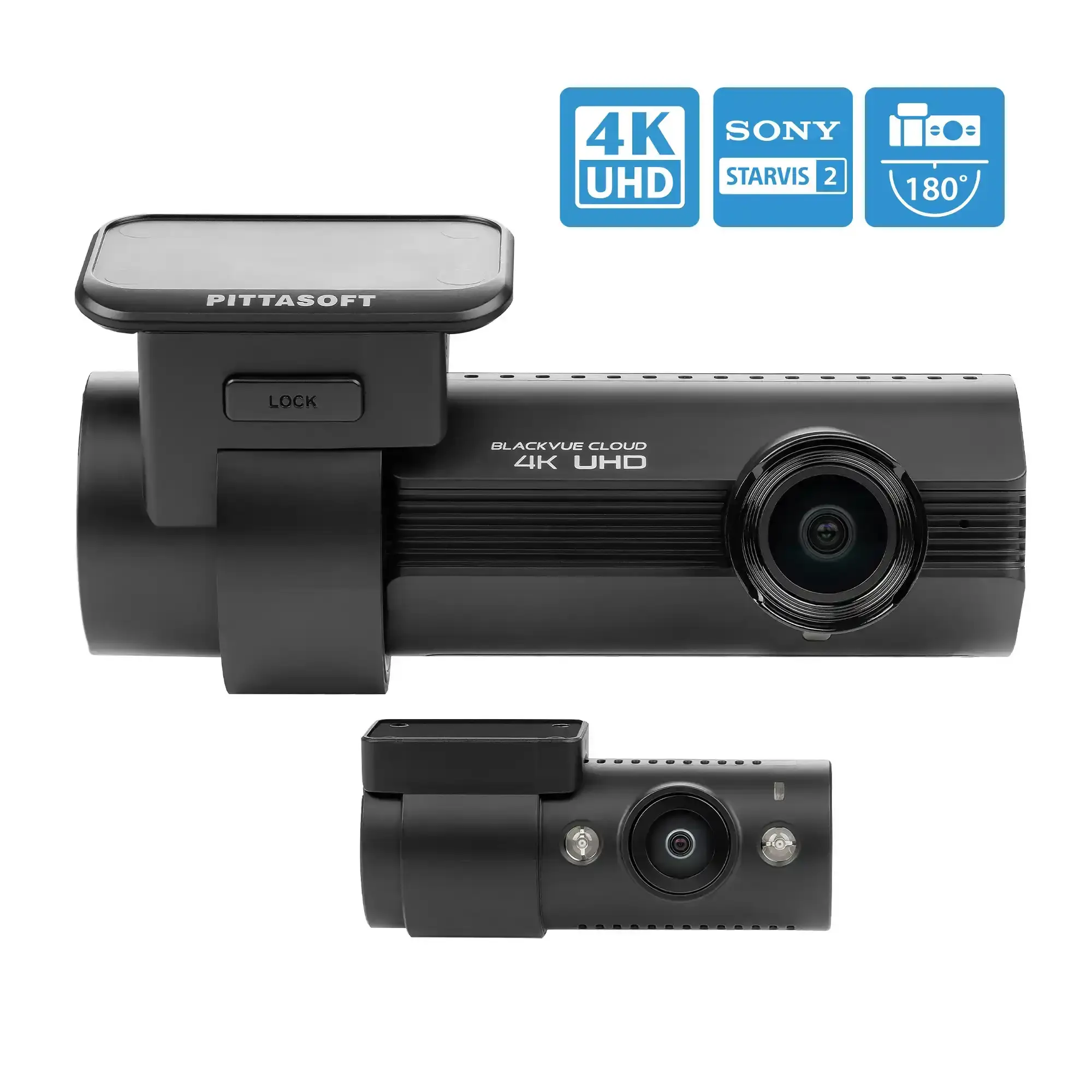

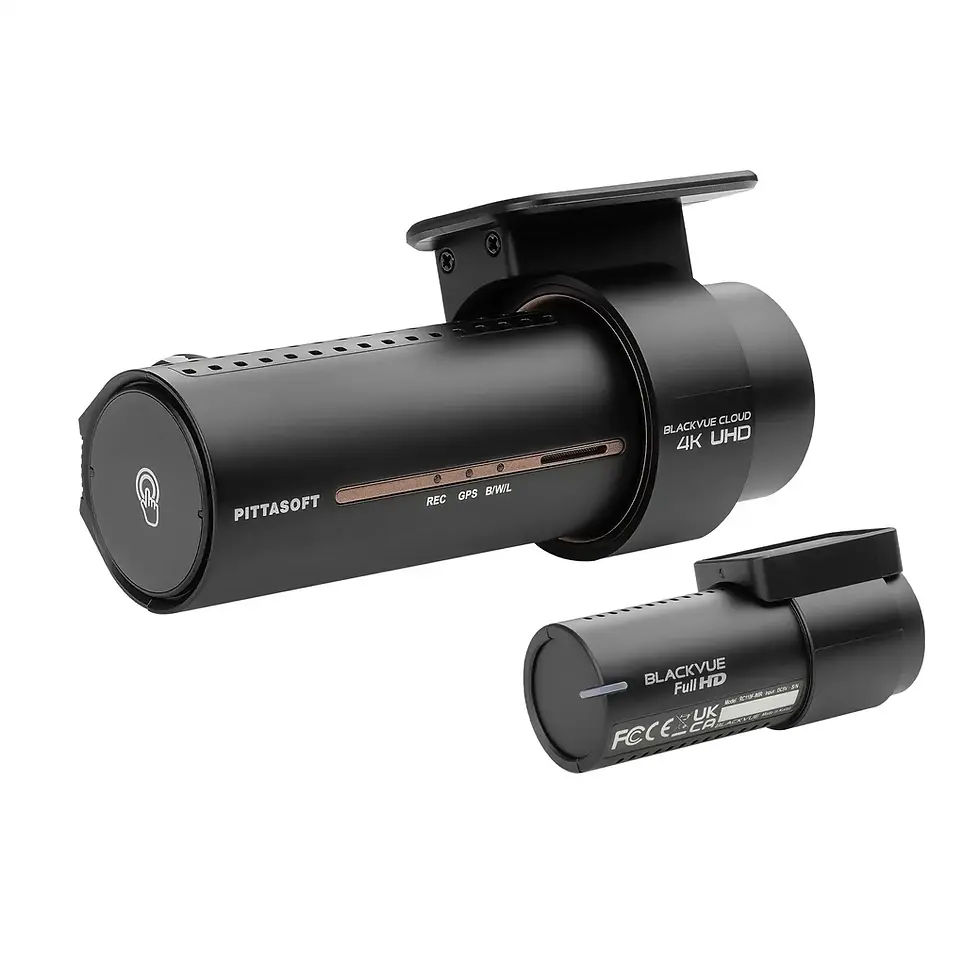

Blackvue DR970X-2CH IR Plus (Taxi)
Model with infrared (IR) driver-facing camera
The front camera of DR970X-2CH IR Plus records the road ahead in 4K UHD, while the driver-facing IR (infrared) camera captures every detail of the interior, even in pitch black lighting conditions.
- 4K Ultra HD front camera.
- Full HD 178-degree driver-facing infrared camera.
- Fast 5GHz Wi-Fi.
- Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.
General Specifications
Specifications | |
---|---|
Model Name | DR970X-2CH IR Plus |
Channel | 2CH |
Highlights | 4K UHD (Front) + Full HD (Interior), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
Product Dimensions | Front: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108g |
Rear Camera Connection | Coaxial cable |
Memory Support | microSD card up to 512GB |
Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). |
Parking Mode | YES (hardwiring cable included) |
Parking Mode Event Voice Notifications | YES |
Imaging Sensor | Front: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel) |
Viewing Angle | Front: Diagonal 146°, Horizonal 125°, Vertical 68° |
Resolution Frame Rate | Front: 4K (3840 x 2160) @ 30 fps |
Video Codec | H.265 (HEVC) / H.264 (AVC) |
Image Quality and Bitrate Front/Rear | Highest (Extreme): 60+10 Mbps |
Format Free | YES (Adaptive) |
Event File Overwrite Protection | YES (up to 50) |
SD Card Failure Alert | YES |
Scheduled Reboot | YES |
Video File Extension | MP4 |
Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
Cloud Compatible | YES |
GPS | Built-in (Dual Band : GPS, GLONASS) |
Microphone | Built-in |
Speaker | Built-in |
Impact Sensor | 3-Axis Acceleration Sensor |
LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
Rear Camera IR Illumination | 940nm (2 Infrared (IR) LEDS) |
Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. |
Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
High Temp Cut Off | Approx. 75 °C (167 °F) |
Backup Battery | Built-in supercapacitor |
Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
Power Consumption Hour | Normal Mode (GPS On/2CH): Avg. 480mA / 12V |
Certifications | Front : FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
Software | BlackVue Viewer |
Application | BlackVue Application |
Others | Adaptive Format-Free File Management System |
Bluetooth | Built-in (V2.1+EDR/4.2) |
LTE | External (Optional) |
