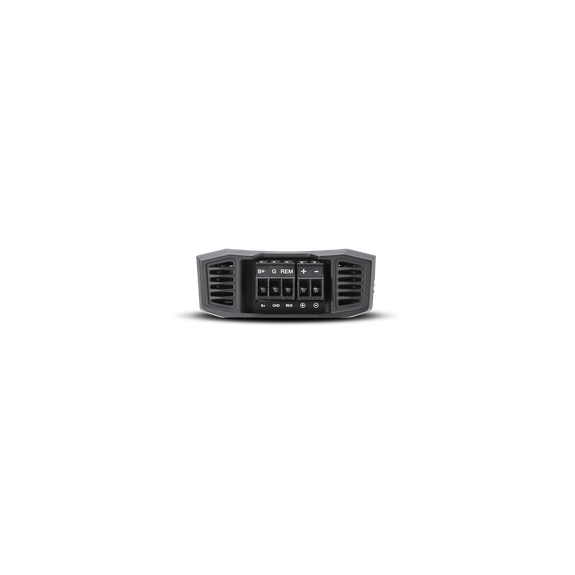

Rockford Fosgate Power 750 Watt Class-bd Mono Amplifier T750X1bd
Power 750 Watt Class-bd Mono AmplifierT750X1bd
The Power T750X1bd is an ultra-compact, Class bd 750 Watt mono amplifier. It features high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
General Specifications
Important Information:
Cta-2006 Compliant
Number of Channels
1
Total Power
(Sum of Rated Power)
750 Watts
Rated Power
(RMS Continuous Power)
500 Watts x 1 @ 4-Ohm
750 Watts x 1 @ 2-Ohm
750 Watts x 1 @ 1-Ohm
Dynamic Power
(PVC/PowerCube®)
538 Watts x 1 @ 4-Ohm
909 Watts x 1 @ 2-Ohm
990 Watts x 1 @ 1-Ohm
Bridgeable
No
Frequency Response
20Hz - 230Hz +/-1dB
Input Sensitivity
150 mV to 12 V
Circuit Topology Class
Class BD
Efficiency (average)
>85%
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0% above 35 Hz
Signal Input
High/Low Level Input: 4-Pin harness
Signal Output
—
Tone Controls
Bass: 0 to +18 dB @ 45 Hz
Crossover Controls
Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Infrasonic: 28Hz @ 12dB/Octave Butterworth
Remote Controls
Optional PLC2 provides Punch Level Control
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
8 AWG
Power Input Connector
Detachable Compression Terminal
Replacement 1040-57997
Speaker Wire Gauge
10 AWG
Speaker Output Connector
Detachable Compression Terminal
Cooling
Dual Fan Cooled
Heatsink
Extruded Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
100 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
86 A
Suggested Alternator
Included In The Box
Dimensions (H x W x D)
1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
Shipping Weight
3.44 Lbs. (1.56 Kg.
